Make:

Winget Syncro

more pictures...

Type:

J21 Heavy Intermediate Wire Drawing Machine

Description:

(depending on model)

This machine is of a unique design which permits a wide finishing wire range to be produced from 8mm or 6.5mm soft copper rod. The construction is of a cone type machine, having 10 double step pullblocks grouped into 6 assemblies. The double capstan is driven through a 4 speed gearbox which allows a string up from 8 to 21 dies.

Specification:

Maximum Entry

8mm soft copper or E.C. aluminium

Finish Diameter

0.51mm to 3.25mm depending on entry wire size

Maximum Finishing Speed

25.7 m.p.s. depending on set up

Elongation Per Die

26%

Maximum number of dies

21

First block diameter

229mm &356mm

Other block diameters

381mm, 245mm & 158mm

Maximum Motor

150 h.p.

View original J21 spec sheet

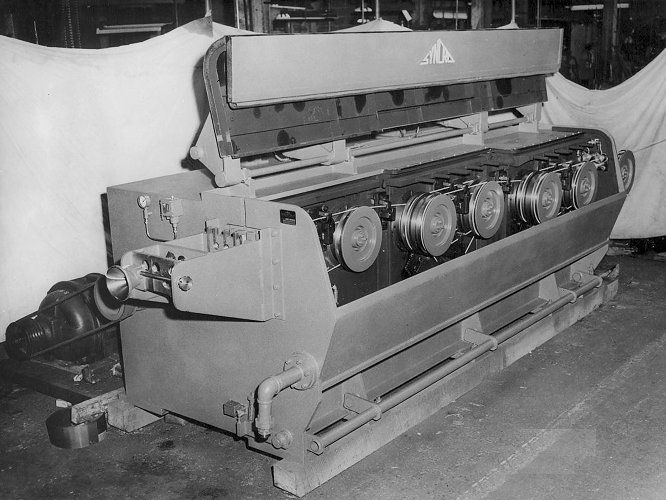

Picture: J21 Intermediate Wire Drawing Machine
