Make:

Babcock Wire Equipment

more pictures...

Type:

660T Trolley Rod Breakdown Machine

Description:

(depending on model)

The Trolley Rod Breakdown machine is available with 2,4 or 6 die positions for the production of round, trolley or other sections. The machine is versatile with provision for a shaving head at the second die position to remove of surface impurities. The water cooled pullblocks are driven by individual gearboxes connected to the main drive motor.

Drafting can be changed to suit round or trolley wire sections by changing the relative block speeds.

Specification:

Maximum Entry

22mm cast copper rod or 14.2mm for trolley rod

Finish Diameter

8.0mm round sections

Maximum Finishing Speed

2.08 m.p.s.

Elongation Per Die

29% for round sections

Block diameter

660mm

Maximum Motor

260 kw

View 660T spec sheet

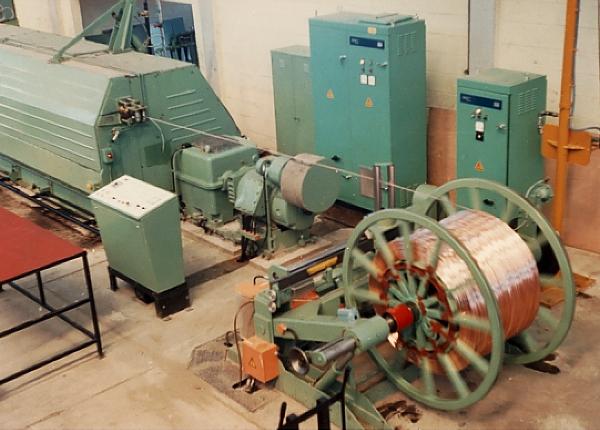

Picture: 660T4 Trolley Rod Breakdown Line with Coiler
